Scope of Application:Bulk materials: biscuits, green beans, dried tofu, fish eggs, rock sugar, eggs, red dates, daily necessities, puffed foods, etc.
Granular items: capsules, granular medicines, seeds, melon seeds, nuts, fertilizers, monosodium glutamate, chemical raw materials, etc.
Small packets: various small packets of materials, including food and pharmaceutical products, that are packaged.

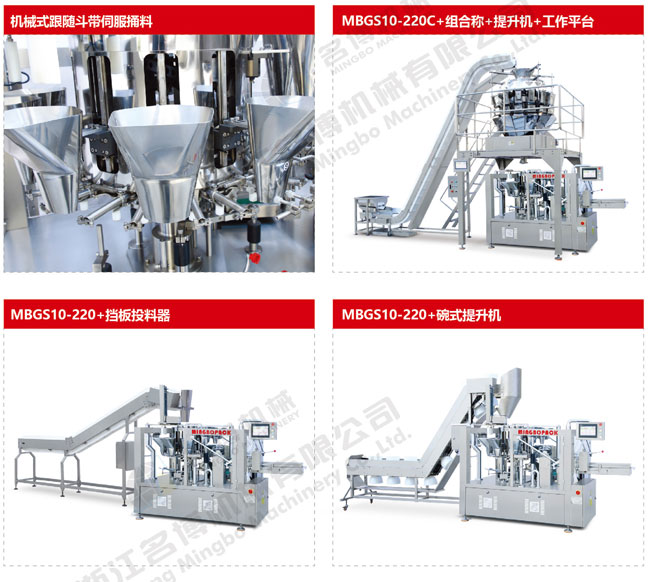

Optional Metering And Feeding Methods：Multi-head weigher, Bowl elevator, Baffle elevator
|
Model
|
MBGS10-220A
|
MBGS10-220C
|
|
Bag size
|
W:100-220mm L:100-350mm
|
W:100-220mm L:100-350mm
|
|
Filling range
|
50-1500g
|
50-1500g
|
|
Packing speed
|
30-50 bags/min
|
30-50 bags/min
|
|
Host weight
|
1800kg
|
2000kg
|
|
Dimensions
|
1950×1580×2250mm
|
2800×1680×2250mm
|
|
Bag type
|
Aluminum foil bags, nylon bags, paper bags and other four-side sealed composite bags (Suitable for stand up pouch and zipper pouch)
|
|
Host power
|
5KW
|
|
Drive power
|
Three-phase five-wire 380V 50HZ
|
|
Air consumption
|
≤0.5m³/min (compressed air is provided by the user)
|
|
